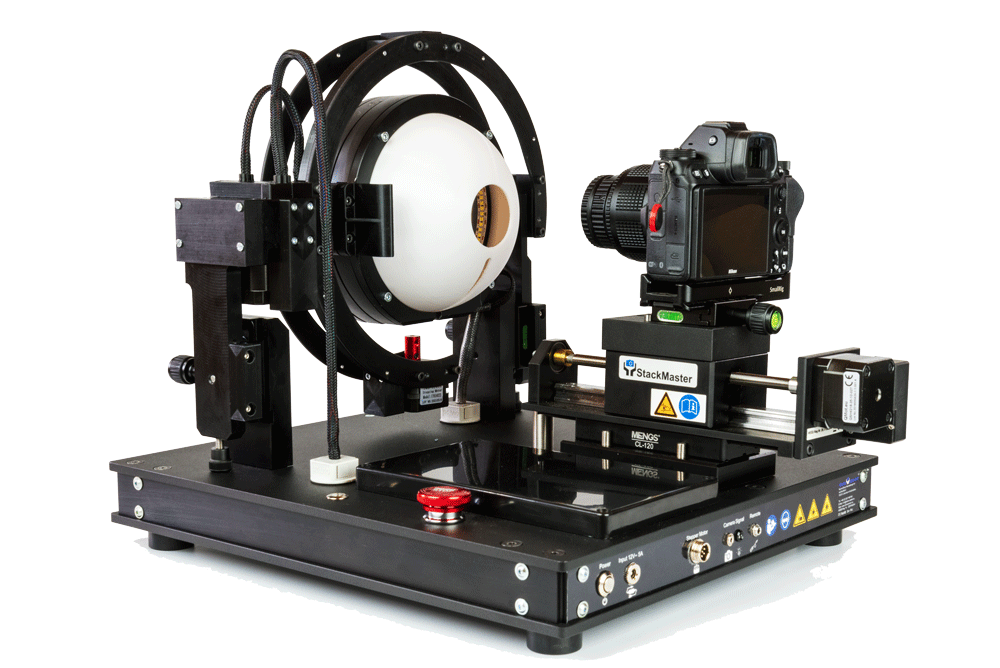

"The Sphere" professional 3-Axis compact system for Photogrammetry & Focus Stacking

"The Sphere" professional 3-Axis compact system for Photogrammetry & Focus Stacking
Based on the "poof-of-concept" "The Sphere" a 3-Axis Panorama Focus Stacking & Photogrammetry system, I developed a new more professional "The Sphere" 3-Axis compact system for Photogrammetry & Focus Stacking device.
This design includes a lot of impprovements and enhancements based customer input and experiences from daily use.
The system can be operated both stationary and mobile.
Appropriate mobile power supplies and adapters for the 12V on-board network in the car are available for mobile operation.
Photography & Project by Panoplace.de & Stefan Dungs


Technical data:

Type:

Professional 3-Axis compact system for Photogrammetry & Focus Stacking with integrated control unit

Dimensions (without accessories):

Length: 395mm;
Width: 355.00mm;
Height: 400 +/- 10mm

Weight (without accessories):

12,2Kg

WLAN:

IEEE 802.11 b/g/n Wi-Fi

802.11n bis 72,2 Mb/s

Certification:

ESP-WROMM-02: FCC, CE, TELEC und SRRC

Power supply:

12V, 5A DC

Supported languages:

German, English, French, Italian, Dutch, Spanish

Here some key features and improvements:

  1. The device is a full metall version;
  2. Limit switch for the swivel arm;
  3. Improved handling of the two dome lights and
  4. larger diametes of the domes;
  5. Replaceble dome and defusor;
  6. Improved light management;
  7. Height adjustable dome system;
  8. Higher resolution for the swivel arm motor;
  9. Drawer for accessories;
  10. Improved safty system and switches;
  11. Build-in 3 axis controller StackMaster R3;
  12. Improved cable management;
  13. Improved Object holders and management;
  14. Optimized for the StackMaster Revolution Macro slider;
  15. Prepared for Field Monitor usage;

Here are the improvements in detail without any order:

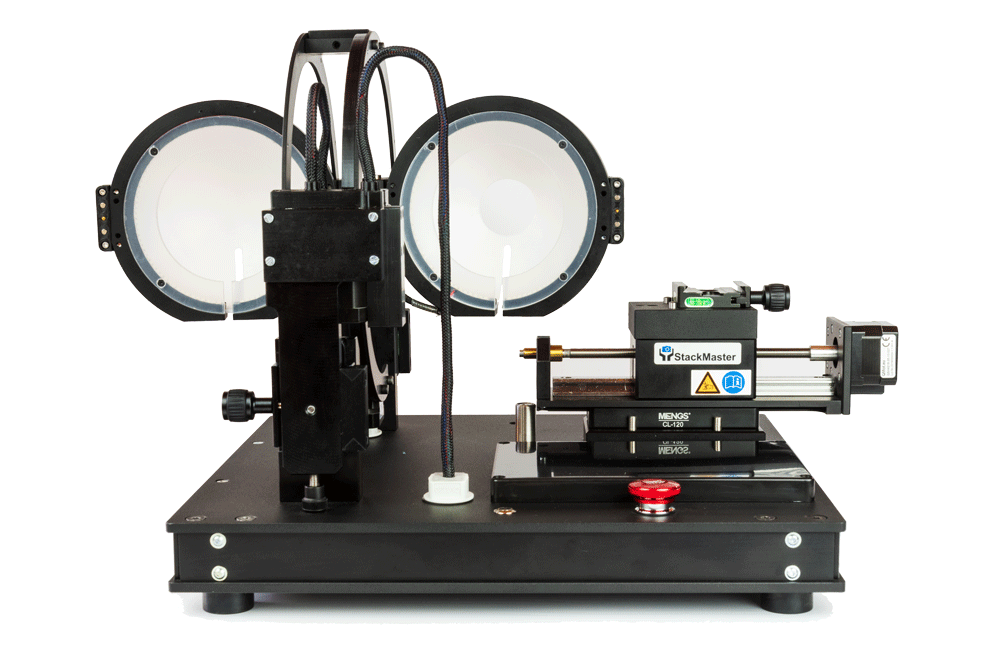

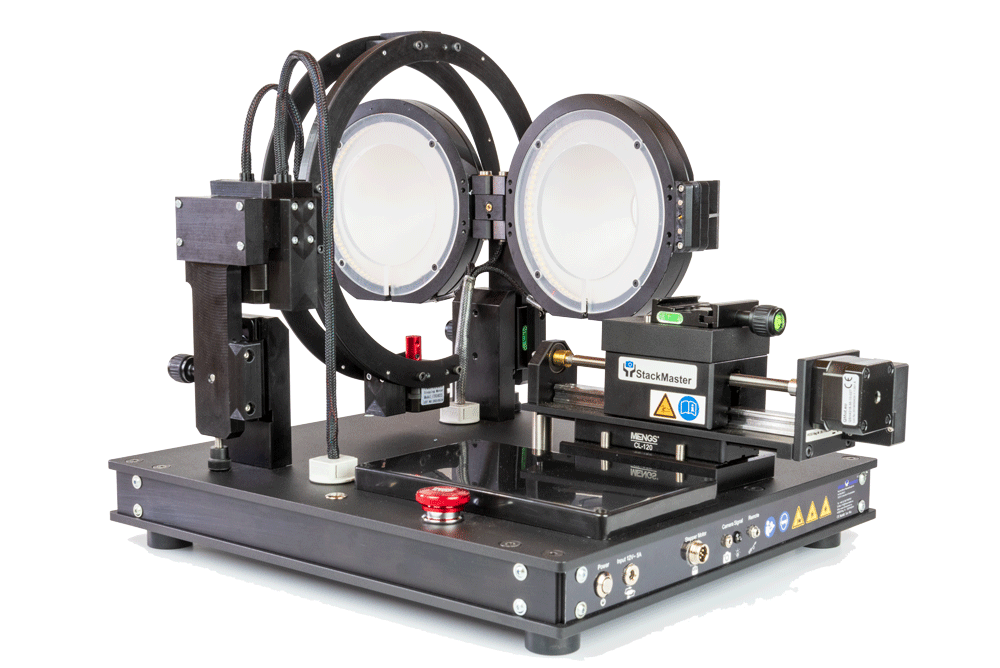

1. "The Sphere" professional 3-Axis compact system for Photogrammetry & Focus Stacking with open dome:

Photography & Project by Panoplace.de & Stefan Dungs
A magnet holder and an handel is added to each half dome. The diffuser rings are attached to the half dome via a metal insert with a M3 screw hole.

Furthermore the LED lightsystem is improved with more LED'S and higher CRI. The color temperature is now 6000K and dimmable via Web interface.

2. System shown with mounted camera system and variable macro lens:



Photography & Project by Panoplace.de & Stefan Dungs
The dome system is height adjustable. This is important to allign the lens to the object.

A Ring Mount Focusing Helicoid Ring Adapter 35mm - 90mm with an attached enlager lens helbs to enable the enlargement factor to be continuously adjusted to the subject\object

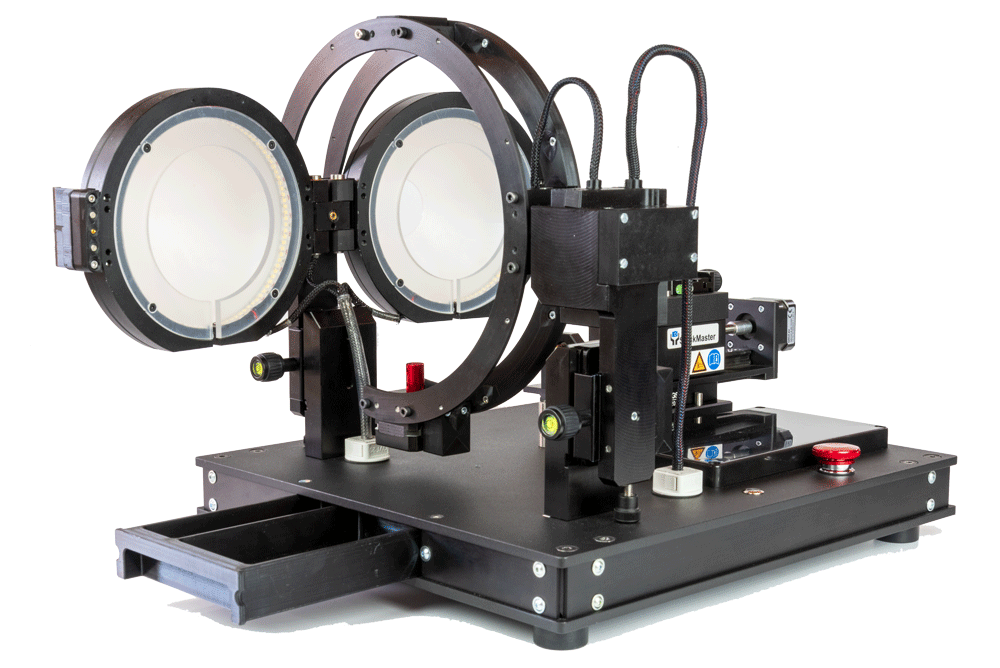

3. Rear view with open dome and drawer:

Photography & Project by Panoplace.de & Stefan Dungs
All cables, accessories and needle holders are stored in the drawer.

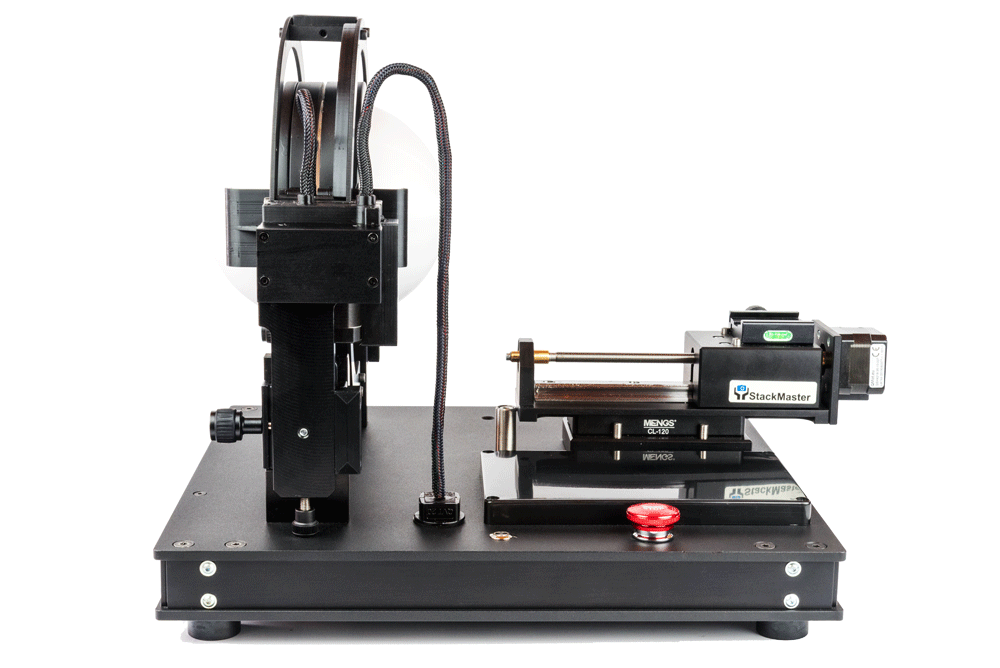

4. Side view with open dome:

Photography & Project by Panoplace.de & Stefan Dungs
Magnets and safty switches are build-in the dome handle.

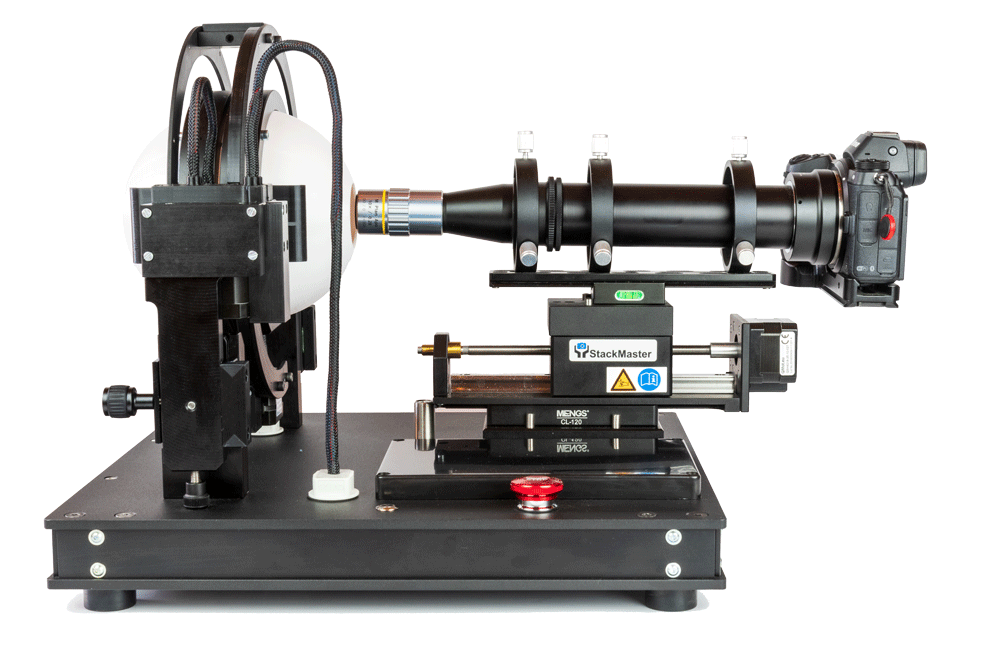

5. Side view with mounted Tublenssystem, Mitutoyo lens and Camera:

Photography & Project by Panoplace.de & Stefan Dungs
The dome system is height adjustable. This is important to allign the Tubelens system to the object.

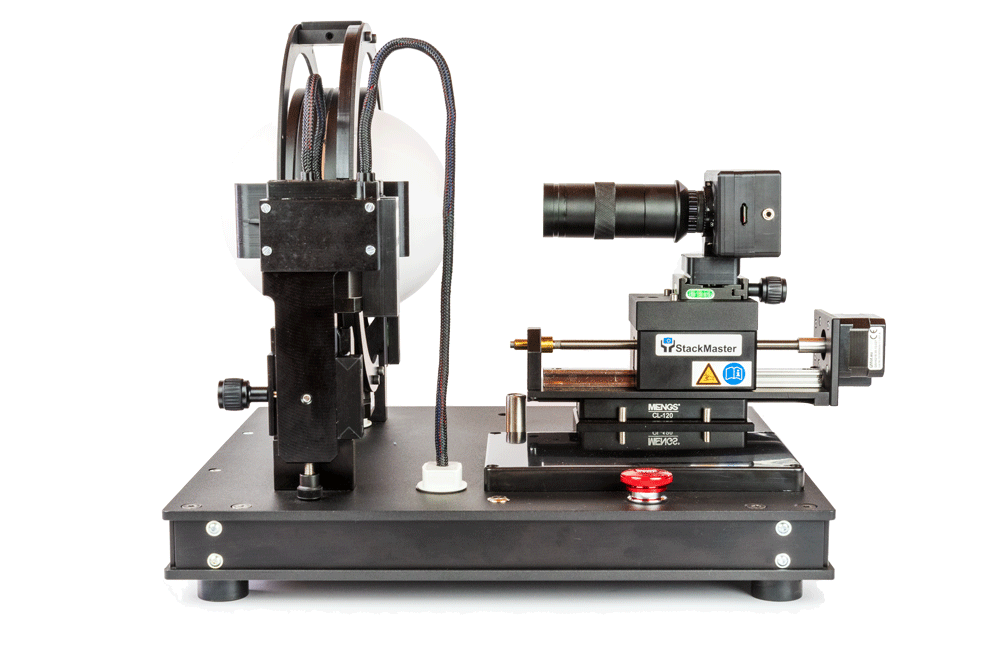

6. Side view with mounted Raspberry Pi Camera and Macro lens:

Photography & Project by Panoplace.de & Stefan Dungs

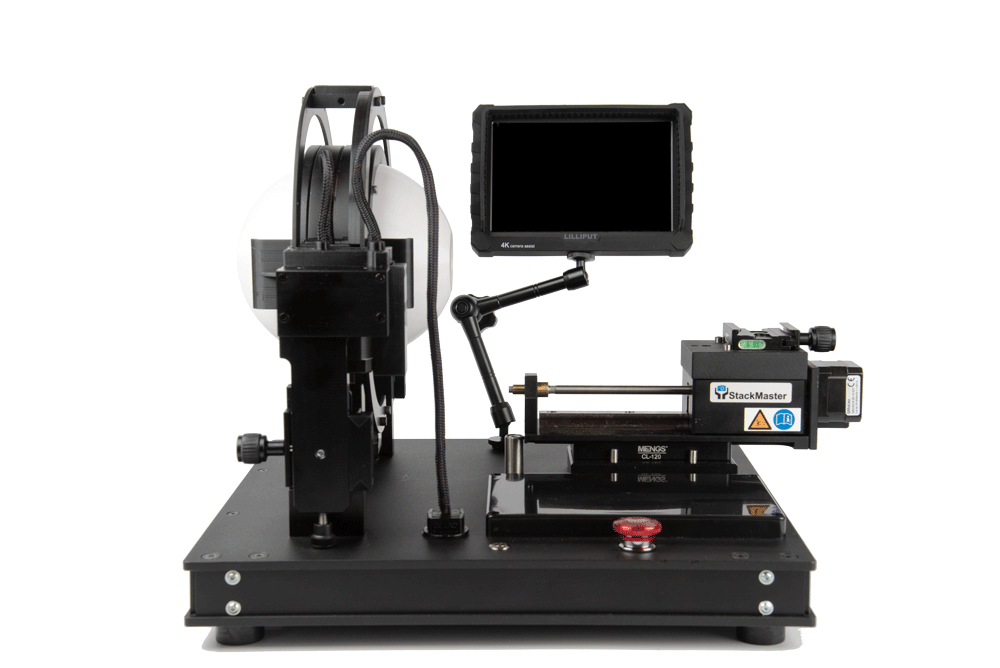

7. System with attached Field view monitor:

 Photography & Project by Panoplace.de & Stefan Dungs
Photography & Project by panoplace.com & Stefan Dungs
